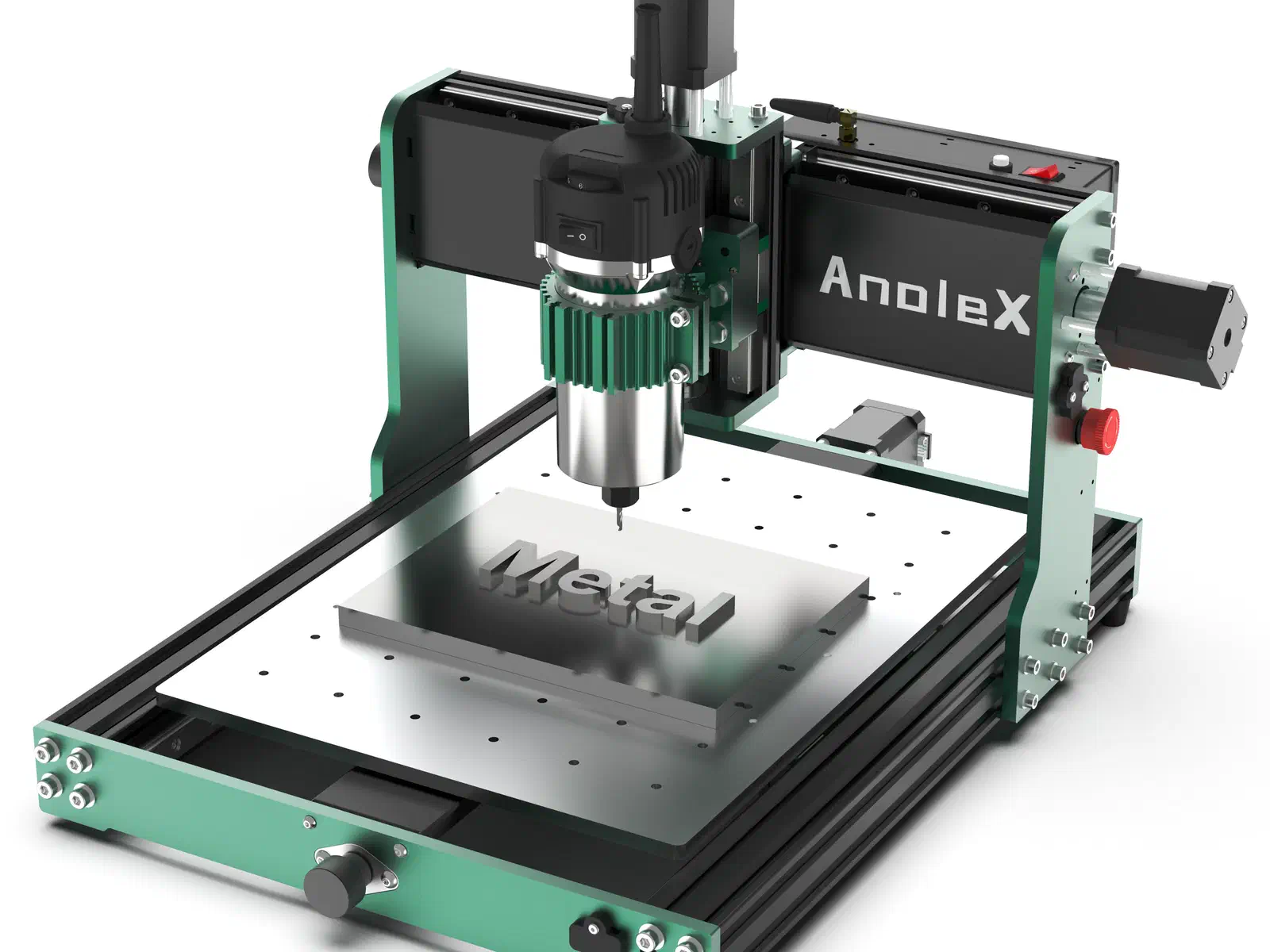

AnoleX 3030-Evo Max

About the Machine

The 3030-Evo Max is AnoleX's current 3030-format router. AnoleX does not publish a working area for this model on the current product page. It runs an 800W trim router (6-speed, 8,000 to 24,000 RPM) on a 65mm mount, MGN15 dual linear rails and T8 lead screws on all three axes, and Nema 17 steppers rated 650 mN·m.

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

The 3030-Evo Max's 800W trim router runs 8,000 to 24,000 RPM across its six speed settings, covering the full range of the chart below and then some. Its MGN15 dual linear rails and T8 lead screws on all three axes give it real rigidity for a desktop router, but a trim router is still lighter duty than an industrial spindle. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, but that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. Treat this machine as capable of moderate depth per pass in softer materials, but back off in hardwood or aluminum: push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM, and this router's 24,000 RPM top speed covers it, so run 16,000. With the bit maker's 0.025mm per tooth (0.0010 in): 16,000 x 0.025 x 2 = 800 mm/min (31 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on this machine. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
