Openbuilds Sphinx 1050

About the Machine

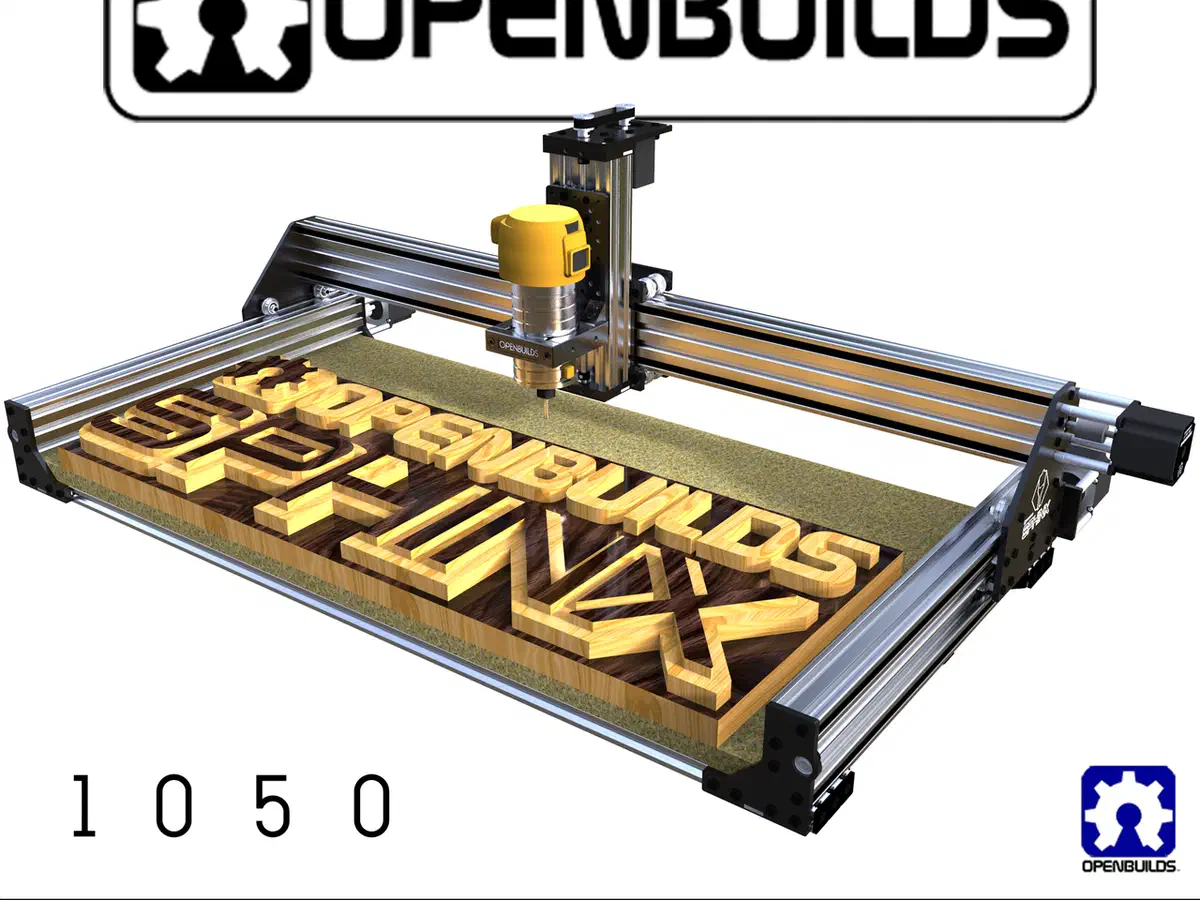

Openbuilds has shut down and no longer sells this model, but it remains fully supported in Easel for existing owners. The Sphinx 1050 has an 833.5 x 325 x 85 mm (32.8 x 12.8 x 3.3 in) working area. Its X axis runs on a 3GT/GT2 closed-loop timing belt, while the Y and Z axes use 8mm Acme lead screws. It was sold as a bundle: motors, the BlackBox controller, and a spindle (Dewalt DWP611 router) were order-time add-ons, not included by default.

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

The Sphinx 1050 was sold as a bundle: motors, the controller, and a spindle were all order-time options rather than included parts, so its actual RPM and rigidity depend entirely on what the original builder chose. Belt-and-lead-screw drive (a 3GT/GT2 closed-loop timing belt on X, 8mm Acme lead screws on Y and Z) is a solid base, but with motors as an optional add-on and a mid-size gantry, treat this as a lighter-duty machine unless you know your specific build used the high-torque motor option and a capable router. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, but that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. Take shallower passes until you know how your build performs. Push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM: since this machine was sold without a spindle included, check your router's plate or speed dial for its actual RPM and use that number instead. With the bit maker's 0.025mm per tooth (0.0010 in): 16,000 x 0.025 x 2 = 800 mm/min (31 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on this machine. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
