Millright CNC Carve King

About the Machine

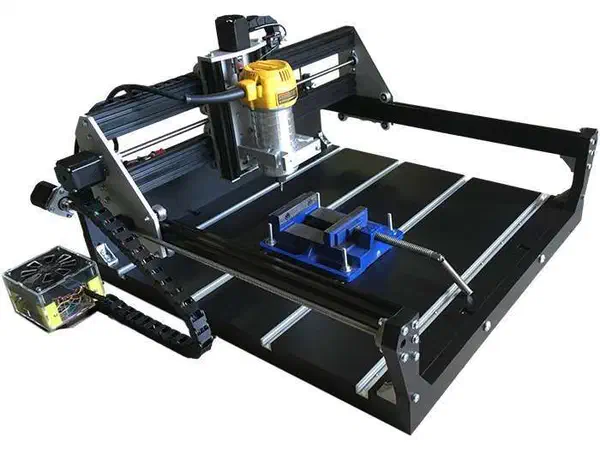

Millright CNC no longer sells this model, but it remains fully supported in Easel. The Carve King has about a 17 x 17 x 4 in working area, trapezoidal lead screws with anti-backlash nuts and V-slot rails with polycarbonate V wheels on every axis, and NEMA 17 stepper motors with dual drive on the Y axis. It ships without a router, router mount, clamps, or end mills, so you supply your own spindle.

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

The Carve King doesn't come with a spindle, so its top RPM depends entirely on whatever router you mount, check that unit's own rating plate against the chart rather than assuming a number. Its build, trapezoidal lead screws and V-slot rails with polycarbonate V wheels, is a light hobby frame, not a heavy industrial one. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, but that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. The Carve King falls short of that bar, so take shallower passes. Push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM. The Carve King has no bundled spindle, so check the RPM rating on whatever router you mount and use its actual number if it differs. With the bit maker's 0.025mm per tooth (0.0010 in), at 16,000 RPM: 16,000 x 0.025 x 2 = 800 mm/min (31 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on this machine. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
