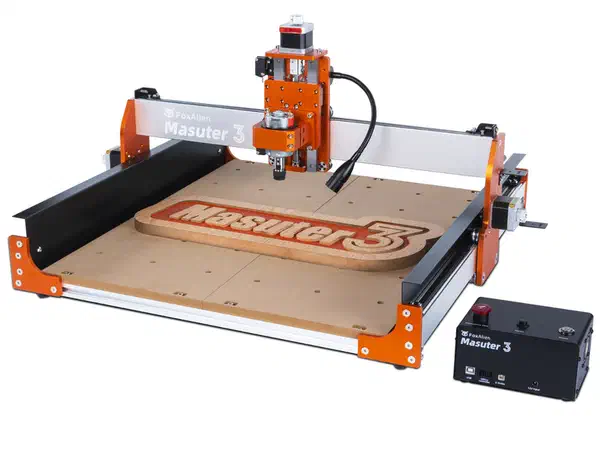

FoxAlien Masuter 3

About the Machine

Final Sale: FoxAlien is retiring this model, but it remains fully supported in Easel. The Masuter 3 has a 400 x 400 x 95 mm working area, a 775-type spindle (10,000 RPM), and 1.3 A stepper motors (0.25 Nm torque).

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

The Masuter 3's 775 spindle tops out at 10,000 RPM, below most of the chart. Small brushed spindles lose most of their torque under top speed, so leave it at 10,000 for everything and control the cut with feed rate. If acrylic starts to melt, speed the feed up instead of slowing the spindle. Skip aluminum on this spindle except for light engraving. Depth per pass is where the machine itself matters. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, but that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. A light machine like this one falls short of that bar, and the fix is simple: take shallower passes. Push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM, but this spindle tops out at 10,000 RPM, so run 10,000. With the bit maker's 0.025mm per tooth (0.0010 in): 10,000 x 0.025 x 2 = 500 mm/min (20 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on this machine. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
