Choose a small rolling car, a detailed pickup or a rubber-band racer. Explore real maker builds and shared designs, then watch a car body and separate wheels take shape in Easel.
Creating an Easel account is free. No credit card required.
Start from a blank workpiece
Start with a new blank workpiece. Resize two squares for the body and roof, overlap them and use Combine to join the silhouette. Add a rectangular window and two circles for axle positions. Give the body an outside outline cut and the openings a cut depth equal to the stock thickness. Draw two separate wheel discs with center holes. Watch the real Easel editor and native 3D preview update throughout. This is a basic layout, not an assembled or tested toy. Match the hole fit, axle spacing and wheel size to your hardware before carving.
Creating an Easel account is free. No credit card required.
These builds range from a single wooden silhouette to layered trucks and moving mechanisms. Shared files help you make the wooden parts; axles, finishing and assembly vary by project. These maker examples are not age-graded or safety-tested toy plans. Treat small parts and detachable accessories as display components until you have assessed the finished object for its intended user.

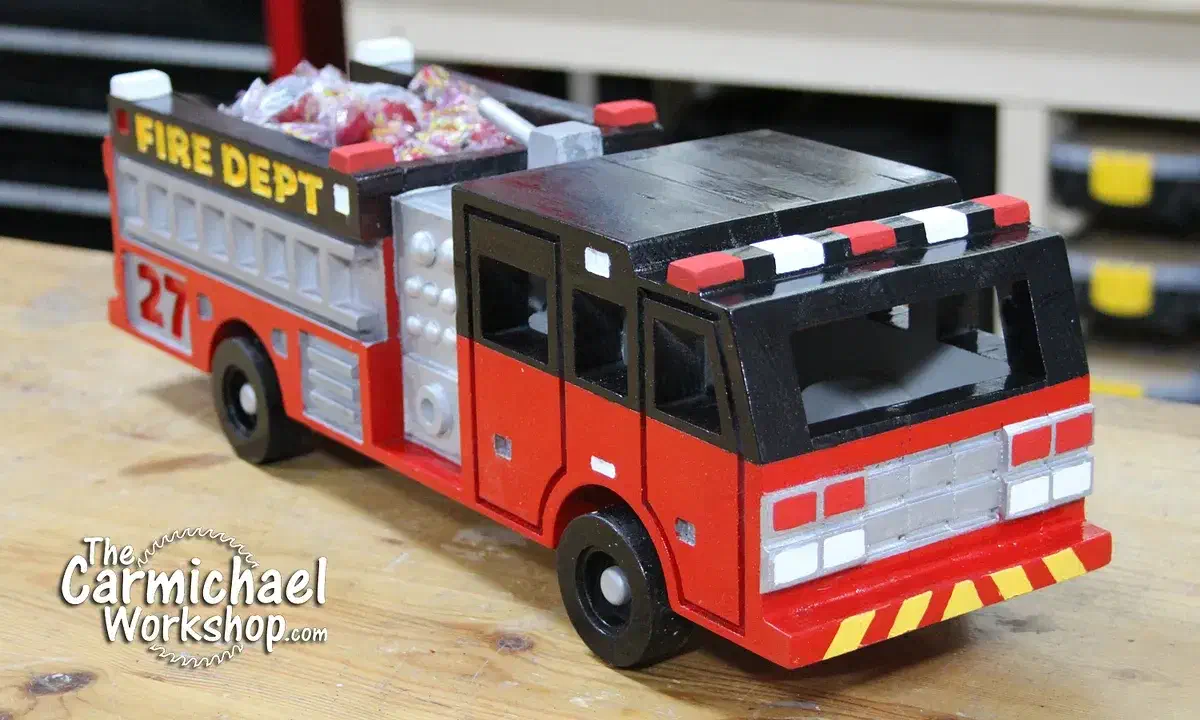

Fire engineby Steve CarmichaelSeven pine layers form a fire engine with an open rear bed for a display or candy. The shared design contains the side details and middle sections. Steve’s instructions cover painting, gluing and adding bought axle pegs. His build uses pine even though the gallery material label says maple.

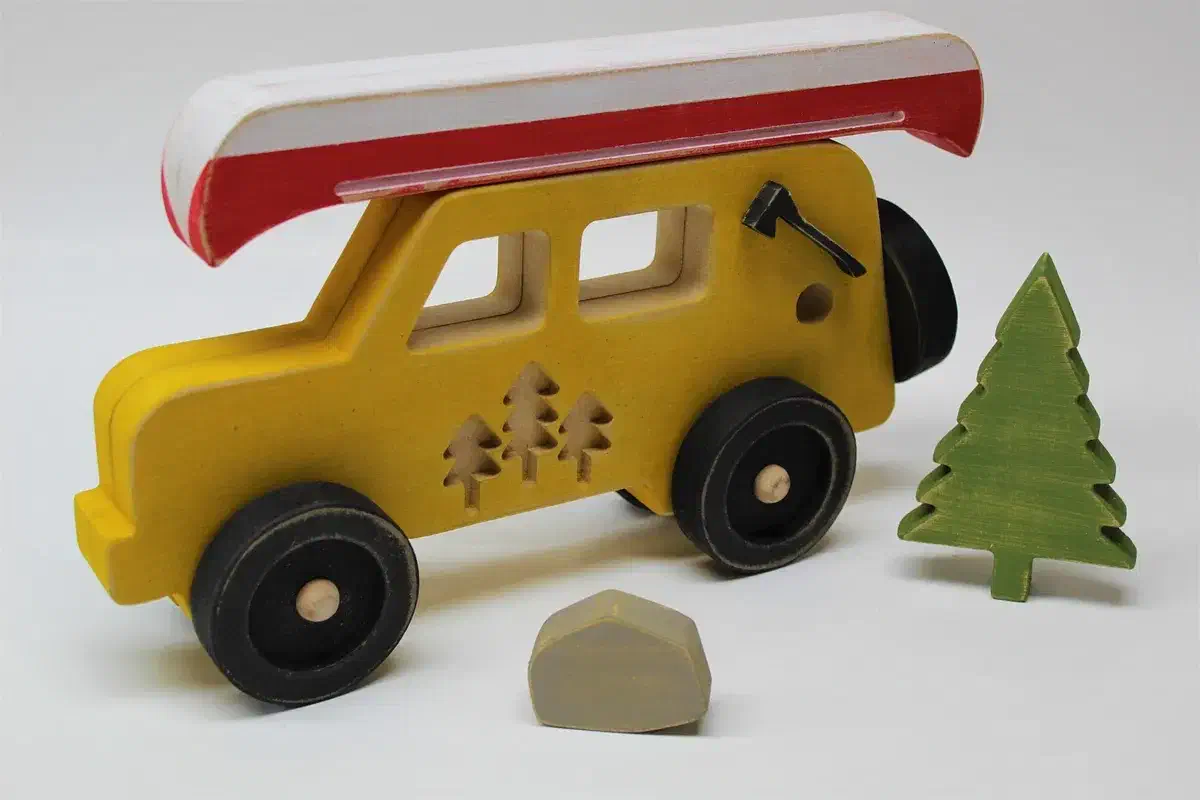

Camping car and canoeby Peter PietruszkoA yellow car carries a red canoe, with a tree and small outdoor accessories alongside it. Pietruszko describes 5/8-inch sheet material and supplies the body halves, wheels and scenery in one layout. Add your own axle holes if you want the wheels to turn; peg-doll passengers are separate.

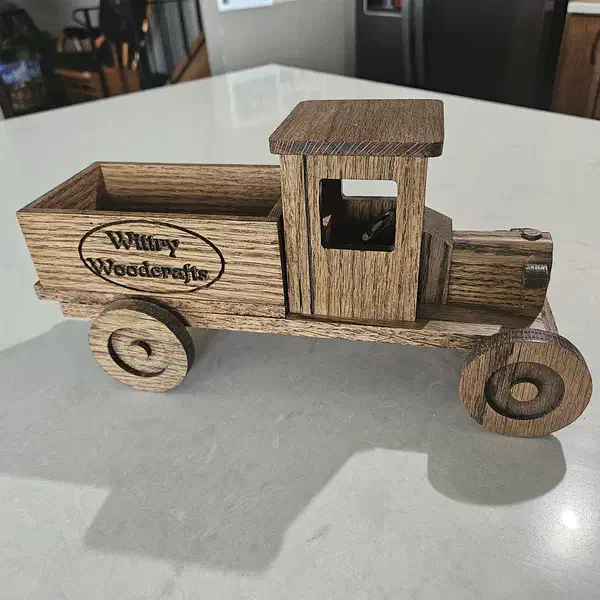

Wooden pickup truckby Richard WittryWittry’s red-oak pickup has an open bed, a small steering wheel and a panel for a name or logo. The shared workpieces include cab, bed, wheel and double-sided base operations. His materials list also calls for small solid blocks and dowels, so this is a mixed woodworking build rather than parts from one sheet.

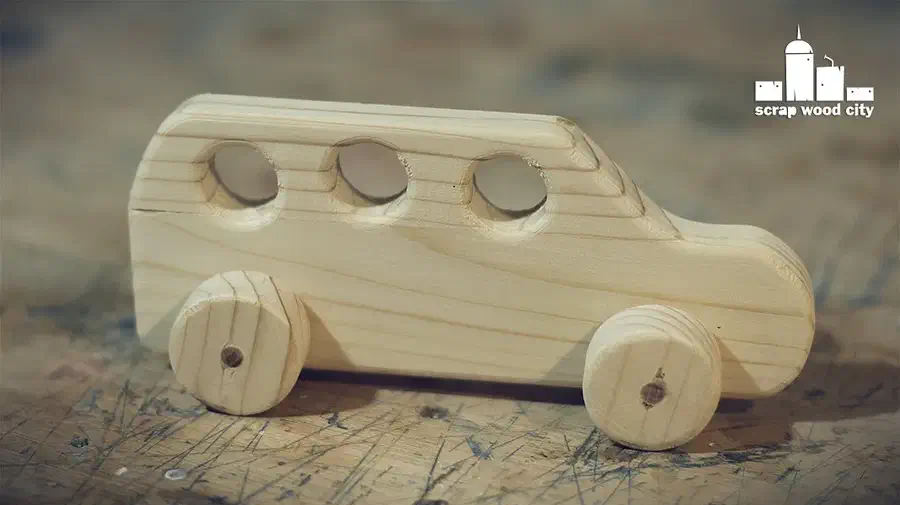

Round-window toy carby Scrap Wood CityThis spruce car has three round windows and simple wooden wheels. The maker built the photographed car with conventional tools, then shared a native Easel layout for the body, wheel discs and holes. Choose the stock thickness and dowel fit for your version rather than treating the photo as a CNC test cut.

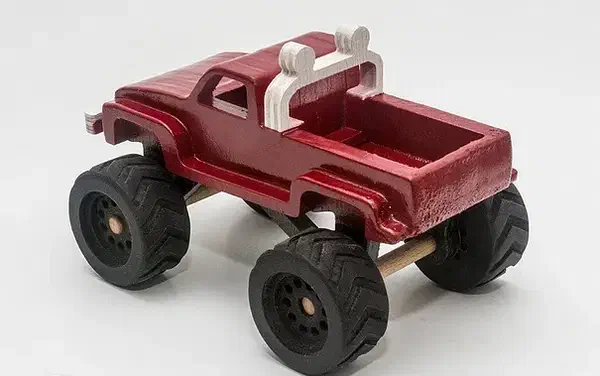

Plywood monster truckby Charlie & Rachael HoustonThin birch-plywood layers build up a red pickup with oversized black MDF wheels. The native file supplies the layered body and wheel layouts. The photographed tread was made with a rotary fourth axis, but the makers say the tread is optional. Two quarter-inch dowels become the axles.

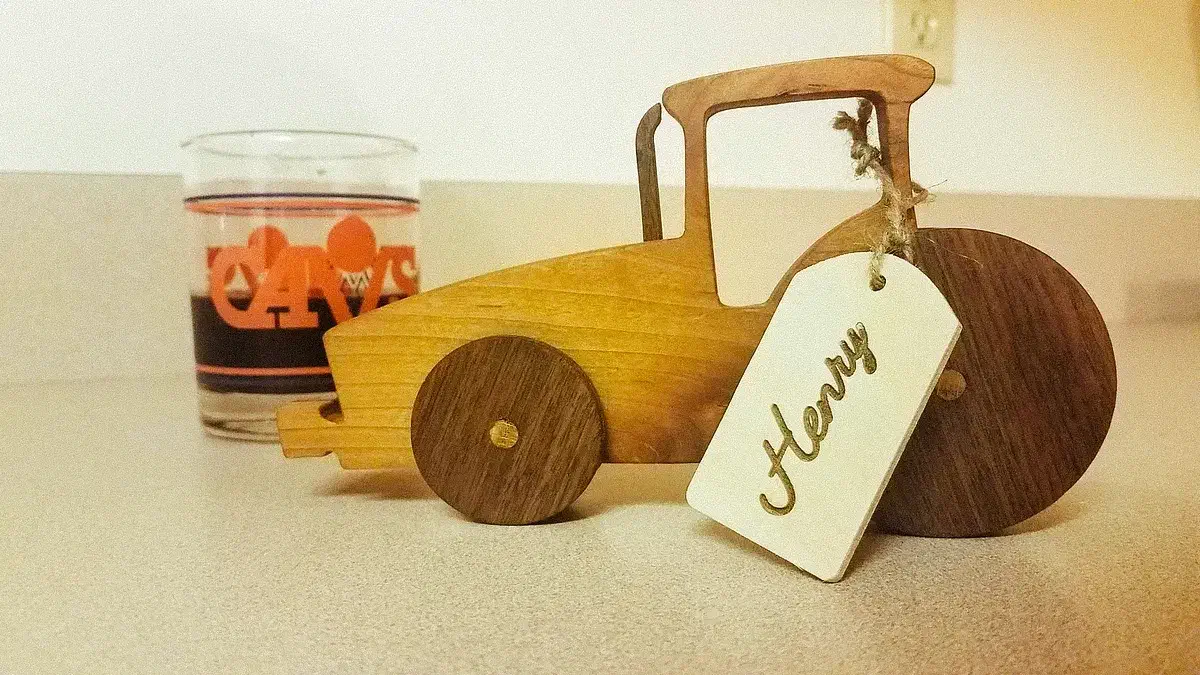

Laminated wood tractorby Fred HouselA tall cab and large rear wheels give Housel’s tractor its farm-machine silhouette. He layers cherry and walnut for the body, uses walnut wheels and oak dowels, and shares separate body and wheel/exhaust layouts. Choose thicknesses for your materials and drill the pilot holes to fit your axles.

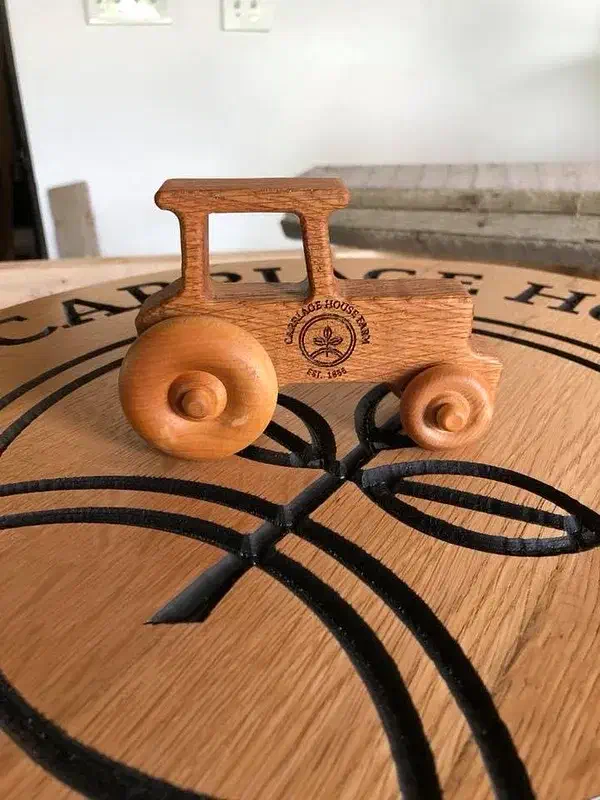

Solid-hardwood farm tractorby Kelly Burns WoodworksBurns cuts this compact tractor from hardwood, including white oak reclaimed from a bourbon-barrel head. Its shared layouts include the body and wheel designs; the instructions also allow purchased wheels and toy axle pegs. Shallow CNC marks locate the holes for later drilling.

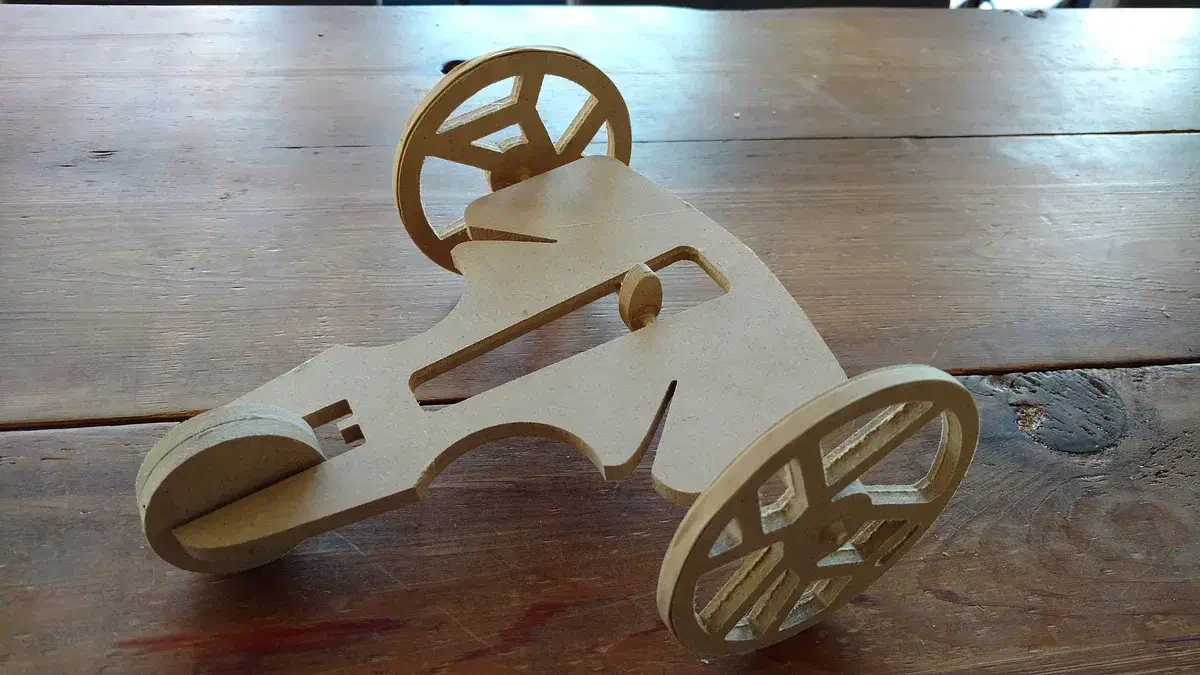

Flat rubber-band racerby Andrew CamardellaAn open MDF frame, patterned wheels and a release cam make this a different kind of rolling project. The shared native layout supplies the flat shapes. Dowels, the rubber band and final fitting make the mechanism work; the close-up photos show the axle grooves and cam rather than a solid carved body.

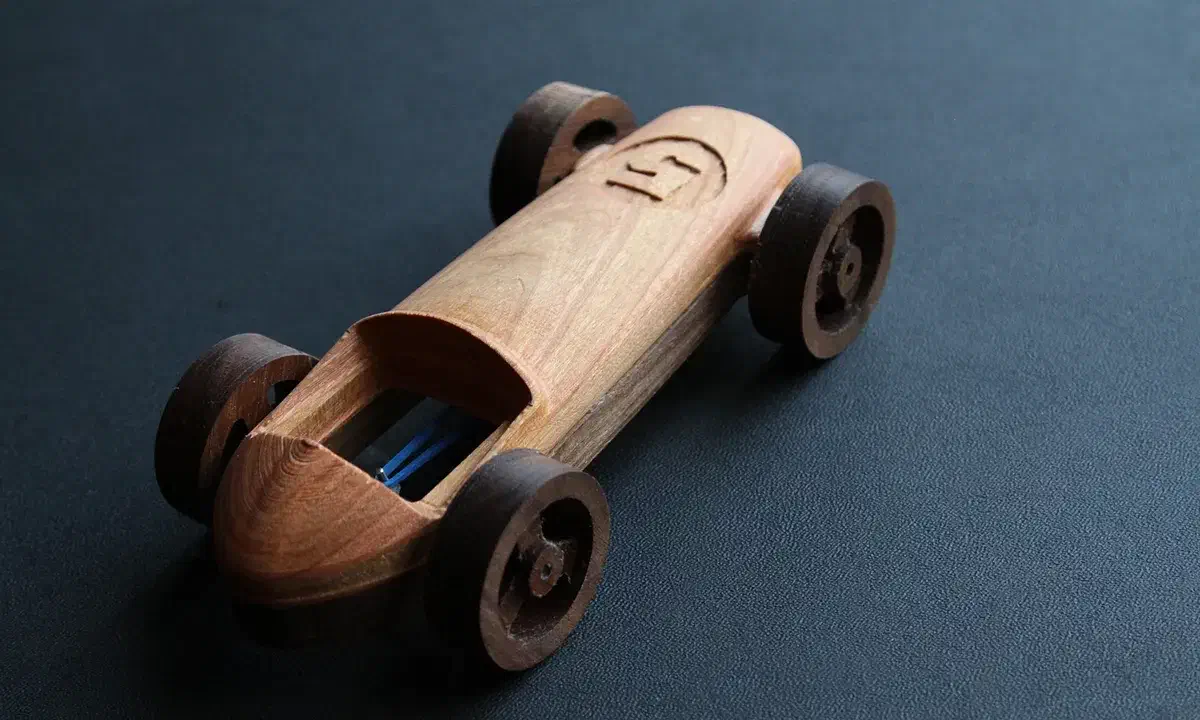

Carved rubber-band racerby Beyond DesignThis walnut racer wraps a sculpted top around a rubber-band mechanism. Start from the editable frame and wheel files, then follow the separately linked machining passes for the top. Those top passes are imported G-code, not editable shape drawings; carving and sanding the curved body is a more involved route than the flat racer.

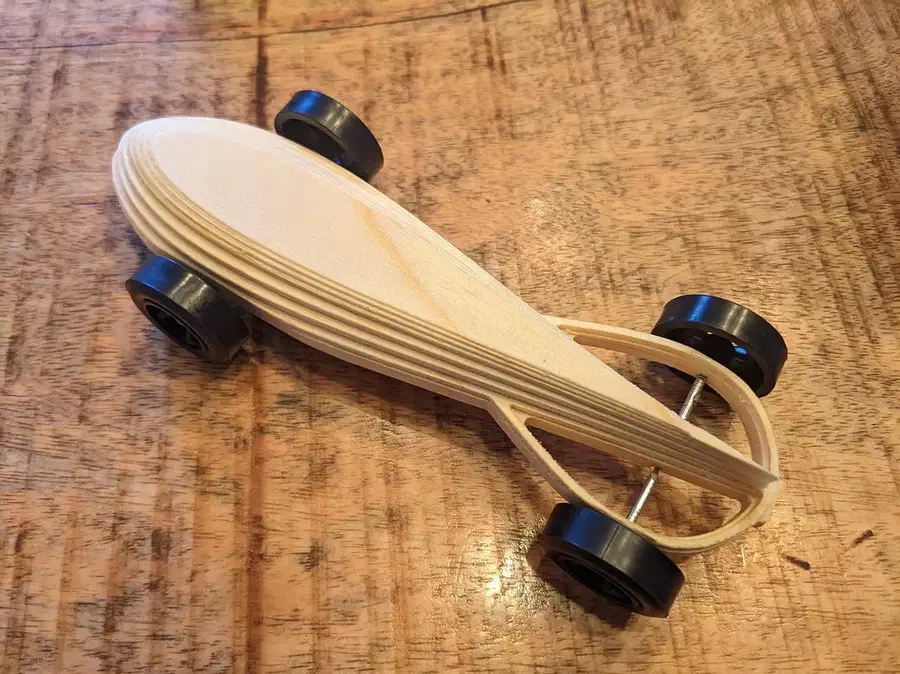

Pinewood derby carby Kevin LoefflerA slim pine body takes wheels from a standard derby kit. Loeffler supplies a native stepped carving layout and a fixture sequence for holding the block above a plywood base. Wheels, axle installation and any added weights follow your kit and race rules; the gallery photo does not establish a race-performance advantage.
See more toy-car projects in gallery search →
Creating an Easel account is free. No credit card required.
From makers’ instructions and discussion
Read the discussions without an account. Log in to post a question; replies are not guaranteed.
Steve Carmichael adds a washer between the fire engine and each wheel, and warns against gluing the wheel to its axle peg. Fred Housel uses a different arrangement: the dowel fits tightly in the wheels but turns in a slightly larger body hole. Choose which part will rotate before drilling and gluing, so the joint that needs to move stays free.
Project notes by Steve Carmichael: read the source.
From Fire Engine by Steve Carmichael.
Ask a questionCarmichael paints the surfaces visible through the cab windows before gluing the layers together, leaving the glue faces bare. Wittry likewise recommends staining the truck’s parts before assembly. Reach enclosed surfaces while the parts are separate, and keep bonding faces free of finish.
Project notes by Steve Carmichael: read the source.
From Fire Engine by Steve Carmichael.
Ask a questionSam Picken adapted Pietruszko’s camping set by carving a pocket in the rock that accepts the tree trunk. The tree then has a place to stand beside the car. If you add scenery, fit the trunk and pocket together as a pair rather than relying on the thin tree edge alone.
Comment by Sam Picken: read the source.
From Best Camping Trip Ever!!! by Peter Pietruszko.
Ask a questionCreate a free Easel account to copy a shared design and adjust it for your project. No credit card required.
